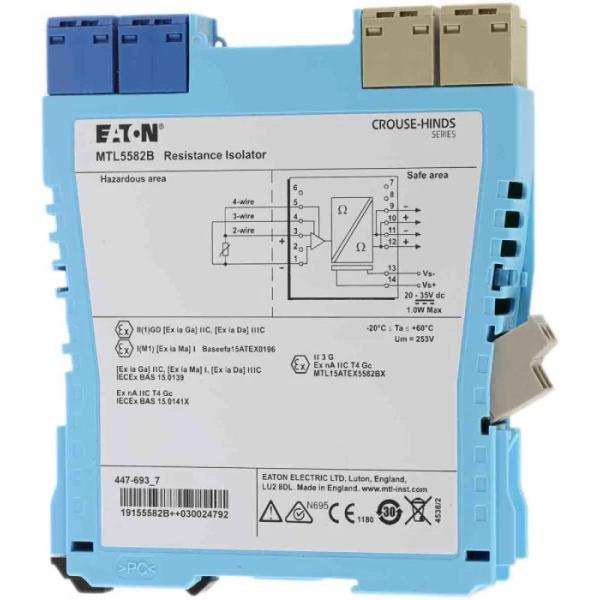

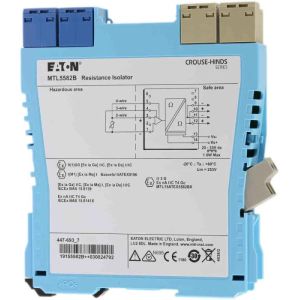

MTL5582B Eaton MTL Series Signal Conditioner

The MTL5582 connects to a resistance temperature device (RTD) or other resistance located in a hazardous area, isolates

Eaton MTL Signal Conditioning Isolating Driver, 20 to 35V DC Supply Voltage, 4 to 20mA Output - MTL5582B

Features & Benefits

• Product Type: Resistance Isolator to repeat RTD signals

• Number of channels: 1

• Location of RTD: Zone 0, IIC, T4 hazardous area: Div. 1, Group A, hazardous location

• Resistance source : 2-, 3-, or 4-wire* RTDs to BS 1904/DIN 43760 (100Ω at 0°C) *user selectable by switches (factory set for 3-wire)

• Resistance range: 10Ω to 400Ω

• RTD excitation current: 200µA nominal

• Output configuration: 2, 3 or 4 wires (independent of mode selected for hazardous area terminals)

• Output range : 10Ω to 400Ω (from a 100µA to 5mA source)

• Temperature drift : ±10mΩ/°C typical (0.01%/°C @ 100O)

• Response time: To within 4% of final value within 1s

• Safety drive on open-circuit sensor : Upscale to 420Ω nominal

• LED indicator: Green - power indication

• Power requirements, Vs: 33mA at 24V, 35mA at 20V, 28mA at 35V

• Maximum power dissipation within unit: 0.8W at 24V, 1.0W at 35V
