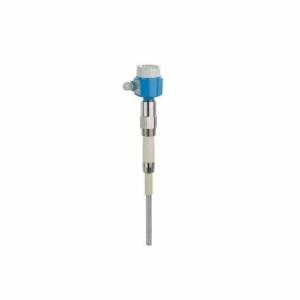

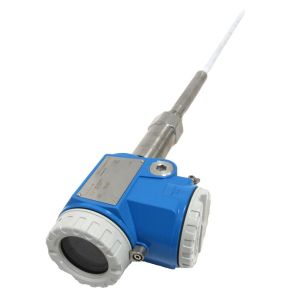

Endress Hauser FMI51-A1BASJA4A1A Capacitance Level measurement Liquicap FMI51

Liquicap FMI51 is a reliable fully insulated rod probe for continuous level monitoring in liquids, particularly in build-up forming media and extremely high temperatures. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

Potentiometric

Measuring principle
Capacitive
Characteristic / Application
Fully insulated rod probe, for standart- and extreme process conditions (temperature, pressure, build-up)
Interface measurement
Interfaces liquid / liquid also with emulsion layers
Specialities
Inactive length
Factory calibrated
short response time by change of value
Supply / Communication
12-36V DC HART
PFM
Accuracy
Repeatablity 0,1%
Linearity error for conductive liquids
<0,25%
Ambient temperature
-50°C...+70°C
-58°F...+158°F
Process temperature
-80°C...200°C
-112°F...392°F
Process pressure / max. overpressure limit
Vacuum ... 100 bar
(Vaccum ... 1450 psi)
Main wetted parts
Insulation material: PTFE,PFA
316L
Process connection
G1/2, G 3/4, G 1, G1 1/2 /NPT 1/2, NPT 3/4, NPT 1", NPT1 1/2
Flanges from DN25.../ASME 1".../JIS...
Process connection hygienic
Tri-Clamp ISO02852 gap free plated
Dairy coupling
Flush-mounted seal
Sensor length
Total length: 6m (20ft)
Inactive length: max. 2m (7ft)
Max. measurement distance
0.1 m ... 4.0 m
(0.3 ft ... 13 ft)
Communication
4...20mA HART
PFM
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, TIIS, INMETRO, NEPSI, EAC
Safety approvals
SIL
Design approvals
EN 10204-3.1
NACE MR0175
Hygienic approvals
3A, EHEDG
Marine approval
GL/ ABS/ DNV
Options
Separate housing
gas-tight probe seal
Application limits
Insufficient clearance towards ceiling
Changing, non-conductive
media, conductivity
< 100 μS/cm
Notice the pressure and temperature derating
